Linares



In this section, we invite you to explore our range of architectural house plans. For full-scale house construction, we use panelized construction technology, while our tiny-houses are built using modular methods.

Please note that the visualizations provided are just one example of many possible final finishes and are meant to illustrate the architect's vision. While they offer a realistic portrayal of the house or interior, certain details in the final design documentation—such as window, door, or chimney placements—may vary slightly from what is shown.

All of these designs can be customized or modified to suit your specific preferences and needs.

Usable area 152.7 m2
Inhabited area 96.5 m2
Footprint 177.1 m2
Storey count 1
Bathroom count 2
Bedroom count 2

Prefabricated House Structure Kit

Basic Structure 22 550 €
Optimal Structure 37 600 €
Passive Structure 47 800 €
Super Passive Structure 52 600 €

Turnkey solution* 214 500

*This price is for an energy-efficient house with a great value due to its carefully chosen materials and applies for the Portuguese market only

**The final cost will depend on your selected finishes and does not include VAT.

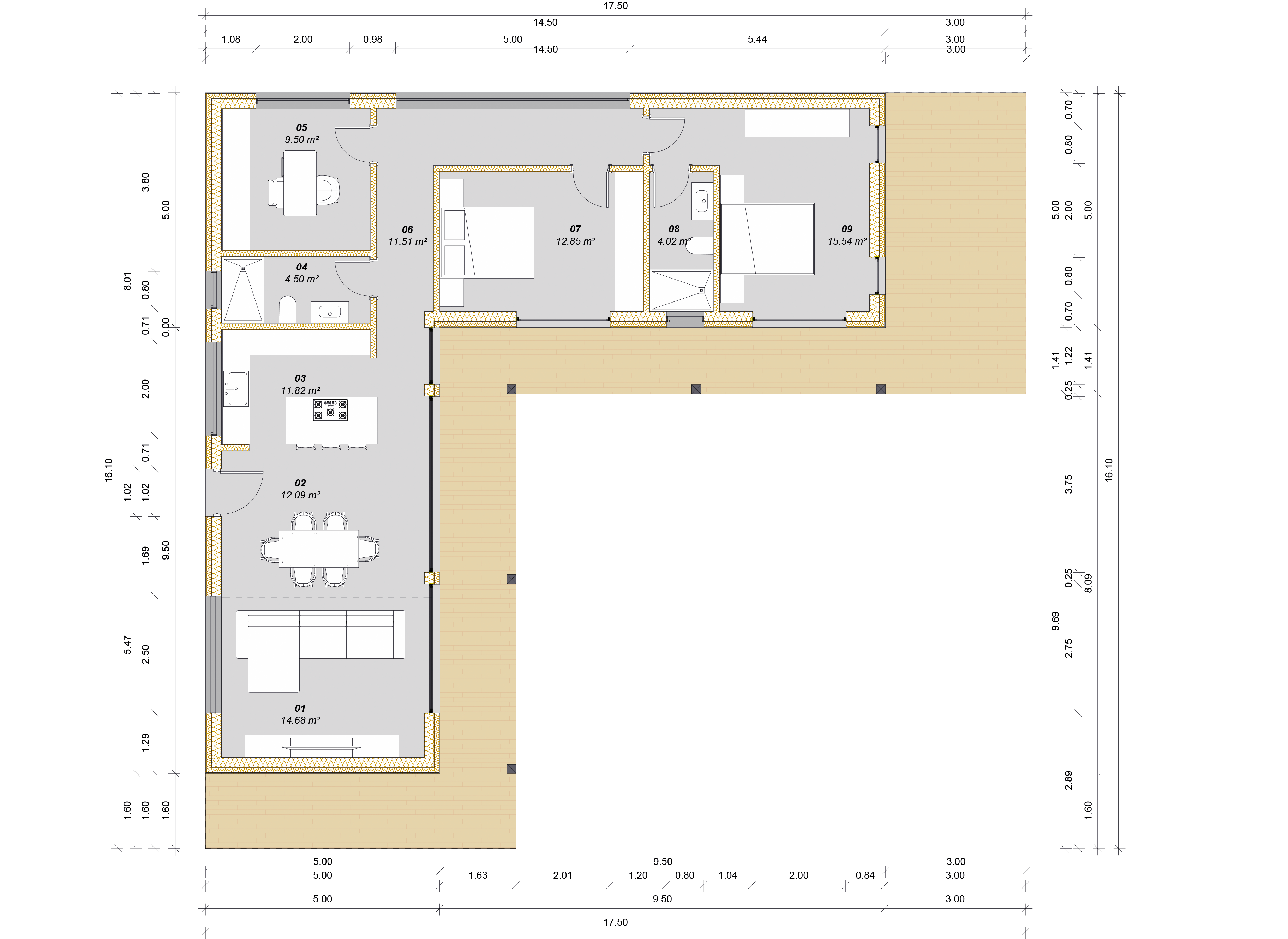

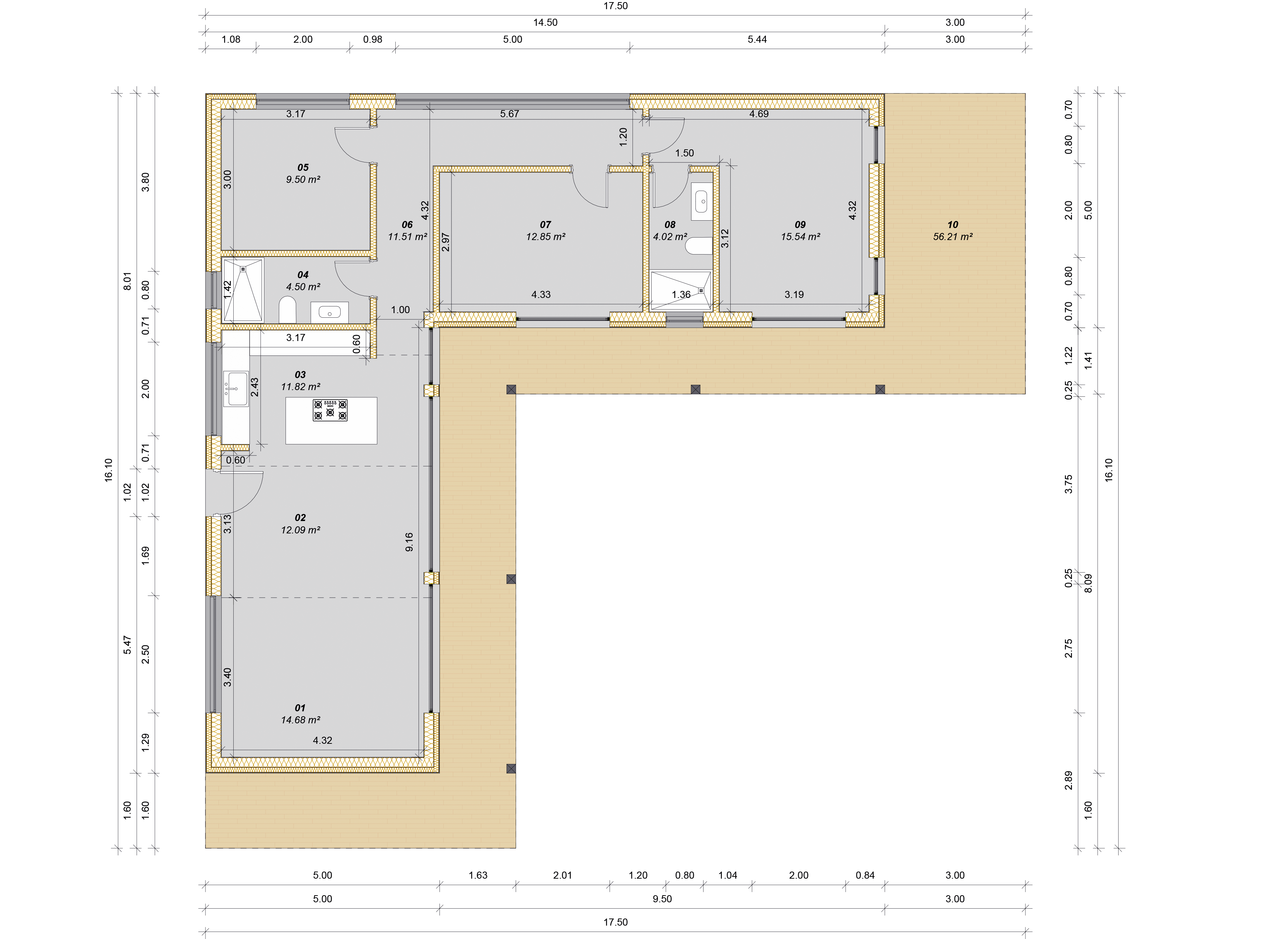

Project plan

01 Living room 14.7 m2
02 Dining room 12.1 m2
03 Kitchen 11.8 m2
04 Bathroom #1 4.5 m2
05 Work cabinet 9.5 m2
06 Hallway 11.5 m2
07 Bedroom #1 12.9 m2
08 Bathroom #2 4.0 m2
09 Bedroom #2 15.5 m2
10 Terrace 56.2 m2

Modification pricing

Please note that the prices listed below refer exclusively to the cost of the building structure!

This price includes only the structure in the specified technical options.

The foundation, engineering and electrical systems, as well as the interior and exterior finishes, are not included in the house structure price.

Explore a detailed technical description of our building structure technology, covering the methodology, materials, and engineering standards, by clicking here.

Basic Structure

22 550

Additional fees:

  • Assembly 12 200 €
  • Delivery 3 €/km

Our basic preset delivers a foundational solution for the building frame, giving you a prefabricated structure that you can then customize and complete.

It’s a great choice for those looking to reduce costs and who have the expertise to complete the construction themselves.

Optimal Structure

37 600

Additional fees:

  • Assembly 13 600 €
  • Delivery 5 €/km

The optimal preset is designed for moderate climates, with a building frame that includes 200 millimeters of insulation and an internal vapor barrier. This setup guarantees a comfortable microclimate and supports the structural integrity and longevity of the building.

This solution is perfect for comfortable year-round living in regions with mild winter conditions.

Passive Structure

47 800

Additional fees:

  • Assembly 15 000 €
  • Delivery 5 €/km

This preset features additional external insulation for the building frame, with thickness adjusted according to local climate conditions.

The primary benefit of this solution is enhanced thermal protection, resulting in a cooler home during the summer and reduced energy consumption for heating in the winter. Over the next decade, this passive insulation will lead to substantial savings on both heating and cooling costs.

This solution is well-suited for regions with harsh winters as well as very hot climates.

Super Passive Structure

52 600

Additional fees:

  • Assembly 17 900 €
  • Delivery 5 €/km

Our SuperPassive Preset meets Passivhaus standards, providing an exceptional solution for energy-efficient, comfortable homes. These prefab preset feature advanced insulation that maintains a steady internal temperature year-round, reducing energy use by up to 75% compared to standard builds.

That also prevents draughts, cold spots, mold, and condensation, promoting a healthier living environment. Designed with a ‘fabric first’ approach and backed by extensive research, our SuperPassive walls deliver lasting quality and performance for both comfort and sustainability.
